Product information

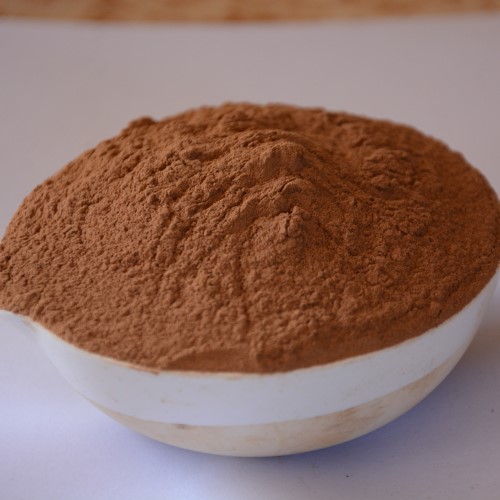

Bentonite is a moisture retaining clay used as an earth electrode back-fill to help lower soil resistivity. The clay is a sodium activated montmorillonite, which when mixed with water swells to many times its original dry volume.
Use:

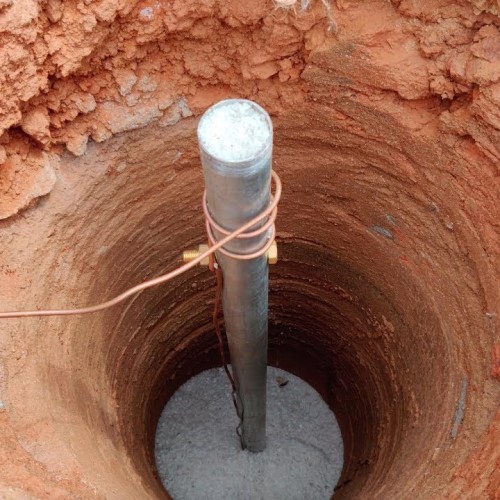

- Electrical Earthing
- Back Filling Compound
- Grouting
Specification of Earthing Grade Activated Bentonite
| Properties | Unit | M TON ACTIVATED |
|---|---|---|
| PH | - | 9-10 |
| Moisture | %WT | 12-14 |
| Geling Time | SEC. | 60 Max |
| Gel Index | % | 70 Max |
| Free Swelling | CC | 22 to 25 Min |
| Mba Value | MG/GM | 300 Min |
| Mesh Size (Passing Through 200 B.S.S) | %WT | 75-80% Min |
| Green Compression Strength | PSI | 12-13 Min |
